Interstand Cooling

Heat Transfer and Fluid Flow Laboratory is capable of preparing the design of cooling headers for interstand cooling at hot strip mill. The design is optimized by using the laboratory linear test bench where cooling intensities are measured. Numerical model of a finishing mill can predict final temperature drops for various combinations of cooling headers.

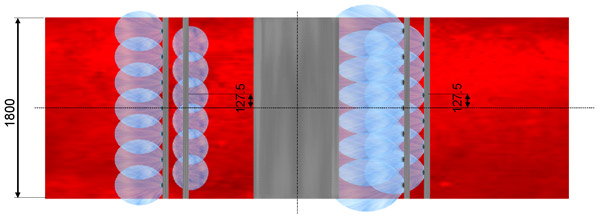

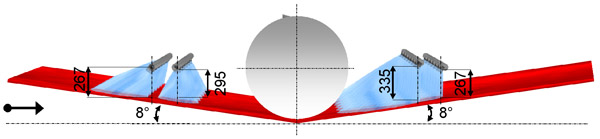

Study of jet impact distribution for interstand cooling

Final Thickness 3.14 mm

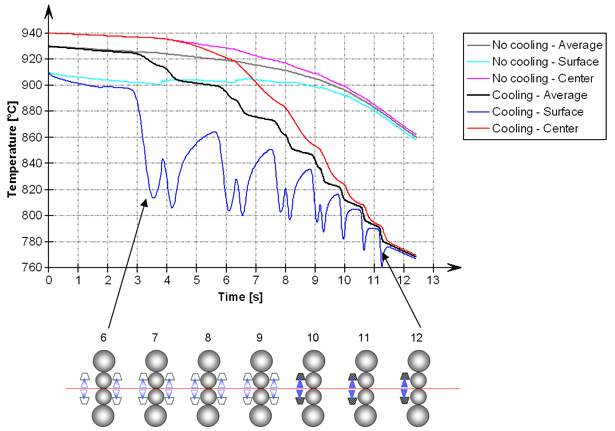

Numerical modelling of interstand cooling, scheme of finishing rolling mill below, two examples
are shown – without cooling and with all of the interstand headers on

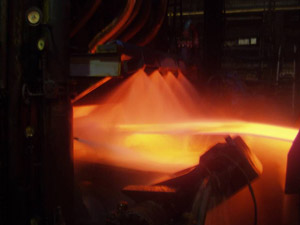

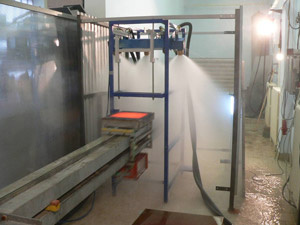

Interstand cooling, laboratory measurement (left), plant application (right)
